H Components

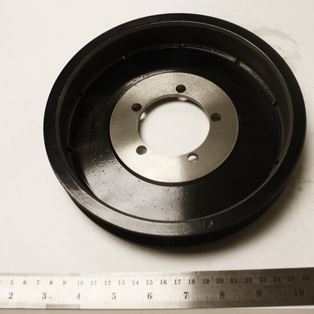

H1/6F
Brake Drum Front, ribbed
2

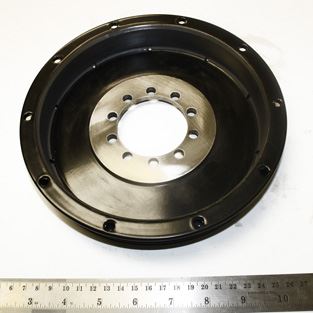

H1/6R
Brake Drum Rear, ribbed
2

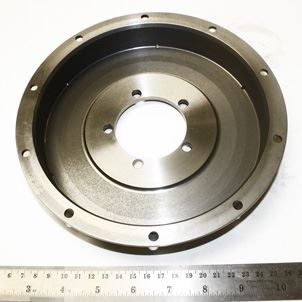

H1/8
Brake Drum
4
H2/1
Spoke Flange, 5 hole
4
H2/2
Spoke Flange, 10 hole
2

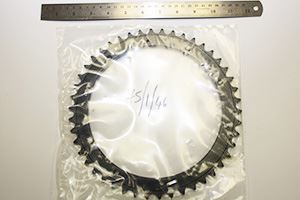

H5/46
Rear Sprocket, 46 teeth
1
H5/46A
Rear Sprocket, 46 teeth, Series 'A'
1

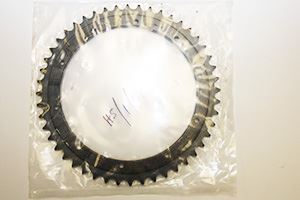

H5/48
Rear Sprocket, 48 teeth
1

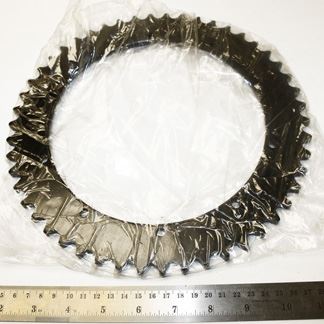

H5/50
Rear Sprocket, 50 teeth
1

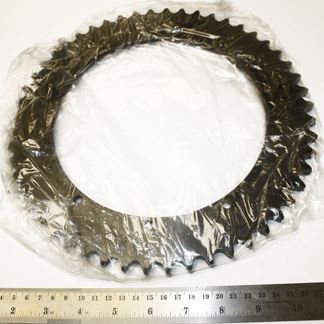

H5/52
Rear Sprocket, 52 teeth
1
H5/54
Rear Sprocket, 54 teeth
1

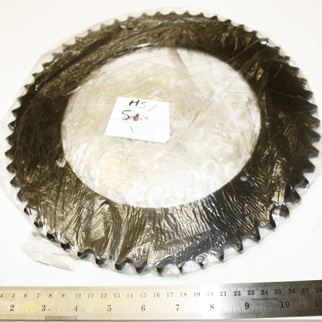

H5/56
Rear Sprocket, 56 teeth
1
H5/8RS
Return Spring, 8" Brakes
1
H7/3
Front RH Brake Plate assembly, Speedo
1
H7/4
Front LH Brake Plate assembly
1
H7/7
Rear Brake Plate assembly
5

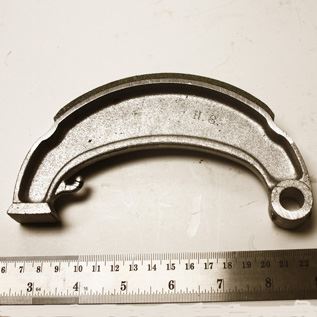

H8
Brake Shoe
8
H9/1
Brake Shoe Pivot
8

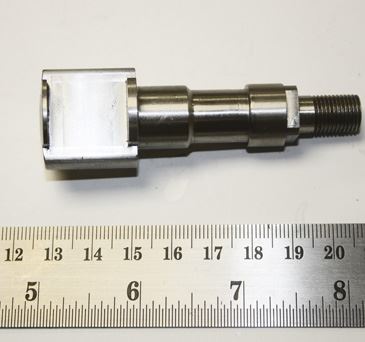

H10
Brake Cam
4
H12/2
Brake Cam Arm, front
2

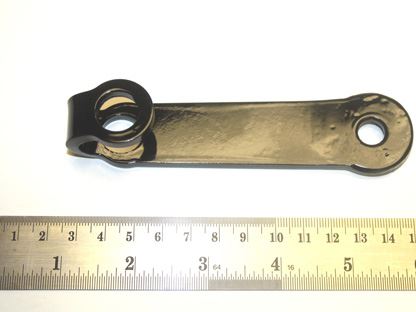

H12/3
Brake Cam Arm, rear
2

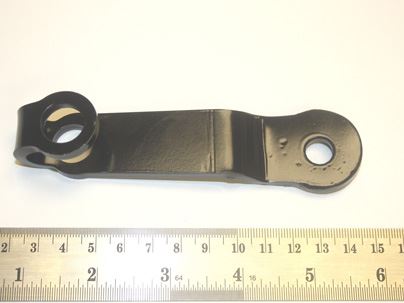

H12/4
Brake Cam Arm, Series 'D'
1
H13
Serrated Washer
5
H14/1
Brake Anchor Pin
4
H15/1
Hollow Axle, front
1

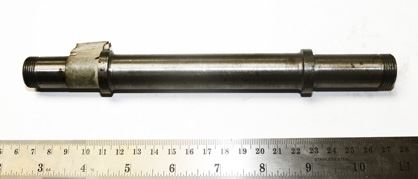

H15/2
Hollow Axle, rear
1

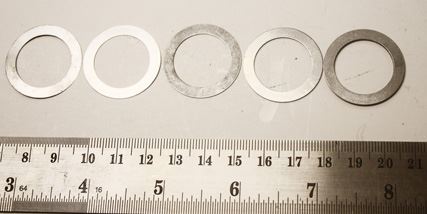

H17SET
Wheel Shims
1

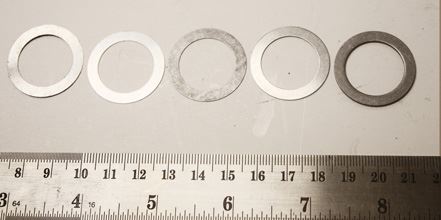

H17MSET
Wheel shams, metric
1
H19/2
Hub Bolt
20
H22
Taper roller Bearing, wide
6
H22/1
Taper Roller Bearing, narrow
6
H22/2
Taper Roller Bearing, metric
4
H23
Speedo Ring Gear
1

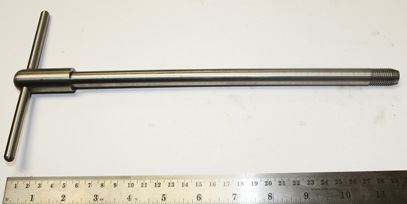

H25/1AS
Solid Axle, rear
1

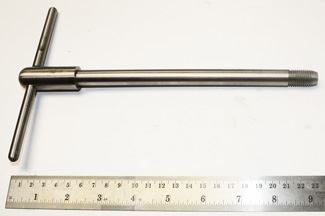

H25/2AS
Solid Axle, front
1

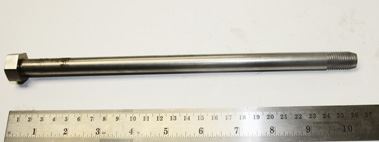

H25/5AS
Solid Axle, rear, Series 'D'
1
H25/6AS
Solid Axle, front, Series 'D'
1

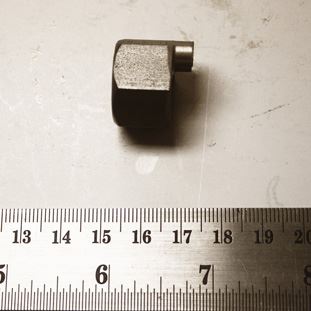

H26
Solid Axle Lipped nut
1

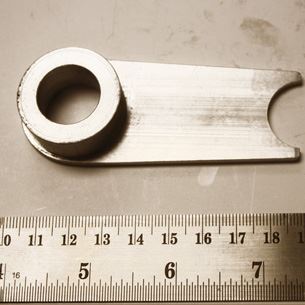

H27/1AS
Cam Bush Steady Sleeve
2

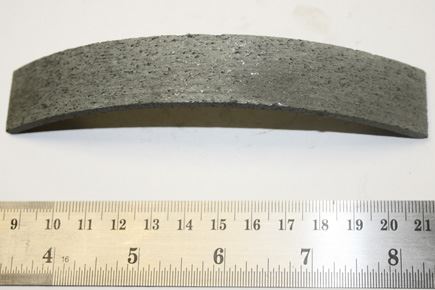

H29
Brake Lining
8
H30
Brake Lining Rivet, 5/16"
48
H30/1
Clutch Shoe Rivet, 1"
4
H30/2
Copper Rivet, 1/2"
16

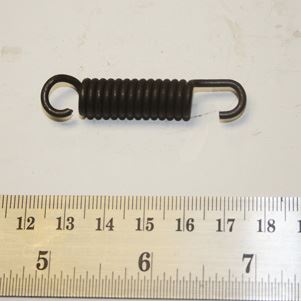

H31
Brake Shoe Return Spring
4
H32/1
Brake Shoe Split pin
8

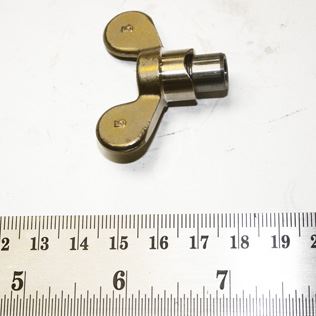

H35
Brake Rod Wing nut
2
H35/1
Brake Rod Wing insert
2

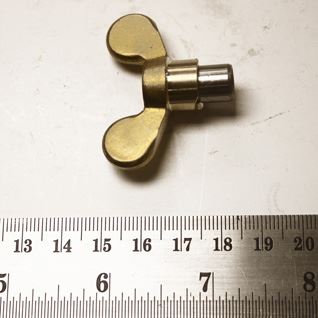

H35/1AS
Brake Rod Wing nut assembly
2
H36/1
Slotted Motion Block
2
H37
Brake Motion Block
2

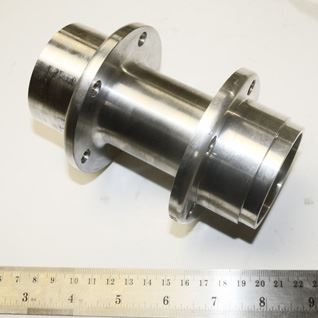

H38/1
Hub Body, front
1

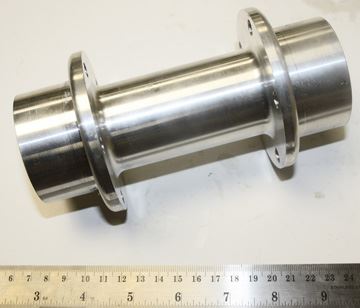

H38/2
Hub Body, rear
1

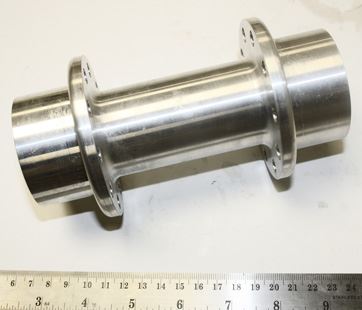

H38/4
Hub Body, rear, 10 hole
1

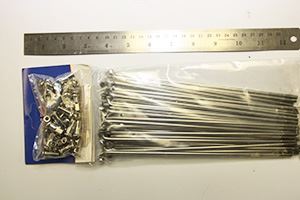

H41/8
Spoke set, 8SWG for 18" rear
1
H42/2
8 SWG Spoke Nipple
80

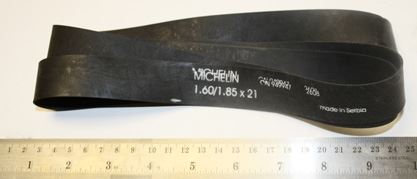

H45
Rim Tape, WM2
1

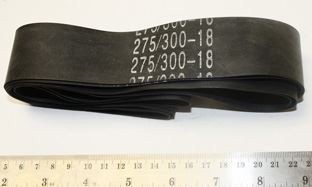

H45/1
Rim Tape, WM2 18/19"
1
H47
Felt washer
4
H48
Brake Shoe Face Plate
8
H51
Water Excluder
4

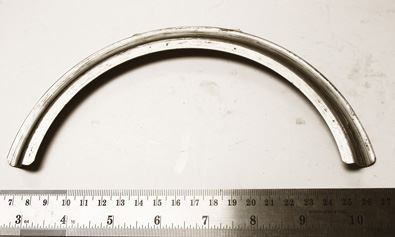

H51/2
Water Excluder, rear, Series 'D'
1
H52
Air Scoop
4

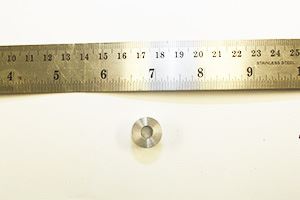

H52spacer
Air Scoop Spacer
4
H53
Air Scoop Gauze, 6" x 3"
4
H54
Brake Cam bush, porous bronze
4
H55
Grease Retainer
4

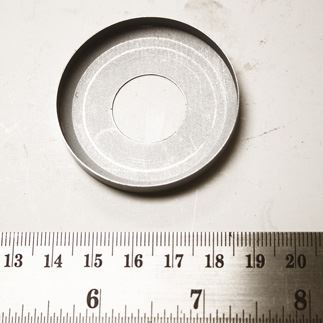

H55/1
Nilos Seal for H22
4

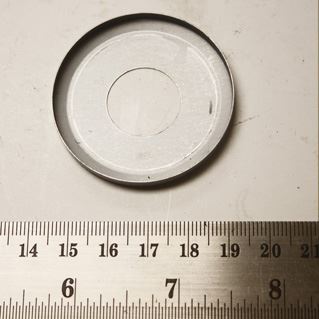

H55/2
Nilos Seal for H22/1
4

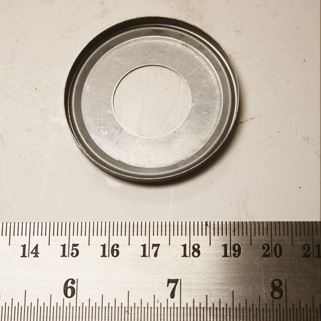

H55/3
Nilos Seal for H22/2
4

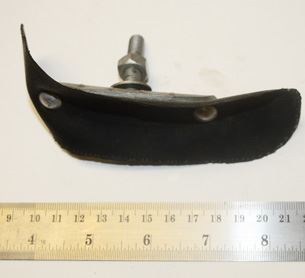

H56
Security bolt, WM1
1
H56/2
Security bolt, WM2
1
H56/3
Security bolt, WM3
1
H59
Hub Bearing Spacer, Series 'D'
1
H59/1
Hub Bearing Spacer
1
H64
Bearing Dust Cover
4
H65
Rear Axle Spacer, Series 'D'
1
H66
Brake Drum Spacer
4
