HomePR50 Components

1BA

Gasket, inner cover

1

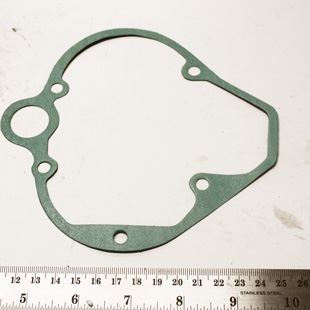

1BAA

Gasket, inner cover, Series 'A'

1

2X

Clutch Centre

1

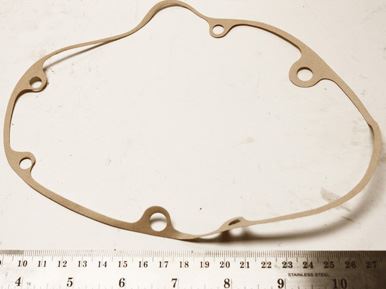

3BA

Gasket, Outer Cover

1

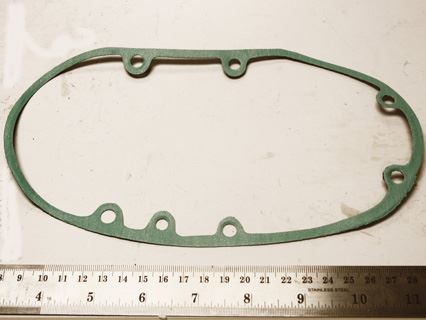

3BAA

Gasket, Outer Cover, Series 'A'

1

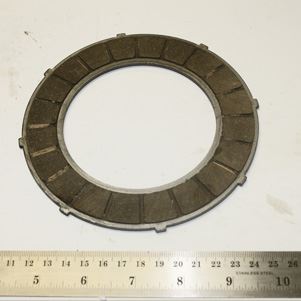

3X-1

Clutch Plate

5

3x-2

Clutch Plate

5

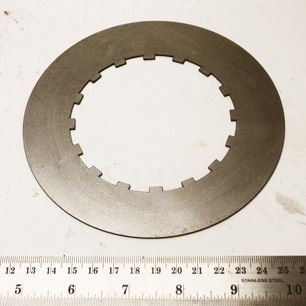

6X

Clutch Plain Plate

6

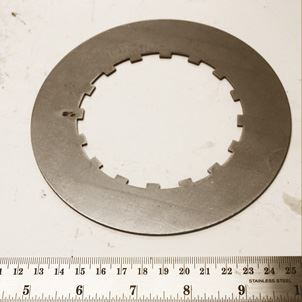

6X-1

Clutch Plain Plate

6

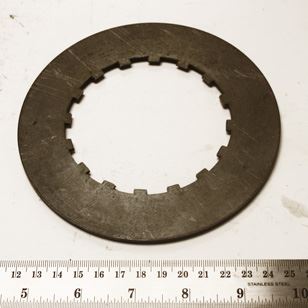

6X-2

Clutch Plain Plate

6

7X-1X

Clutch Case and Chain Wheel assembly

1

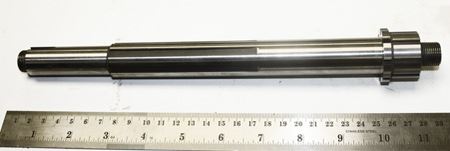

10BA

Mainshaft

1

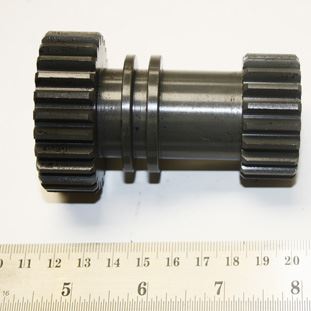

14BA

Sliding Gear, mainshaft

1

15BA

Driving Gear

1

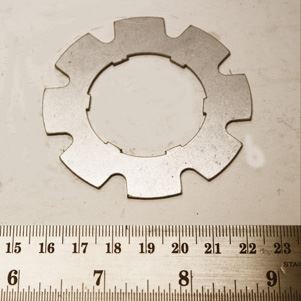

17-1BA

Driving Gear Lockwasher

1

18X

Clutch Spring Plate

1

21X

Clutch Spring

5

22-18

Gearbox Sprocket, 18T

1

22-19A

Gearbox Sprocket, 19T, Series 'A'

1

22-22A

Gearbox Sprocket, 22T, Series 'A'

1

22X

Clutch Spring Cup

5

23BA

Sprocket Spacing Collar

5

23X

Clutch Adjuster nut

5

24BA

Third Gear, Mainshaft

1

24X-10

Clutch stud

5

24X-12

Clutch stud

5

25BA

Third Gear, Layshaft

1

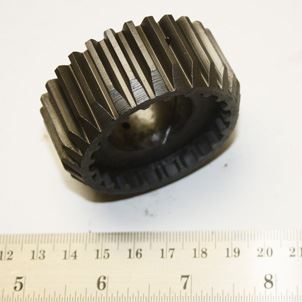

26BA

Second Gear, Layshaft

1

27BA

First Gear, Layshaft

1

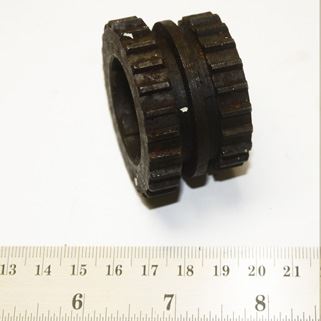

28BA

Small Gear, Layshaft

1

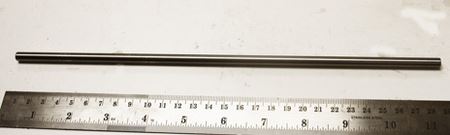

28X

Clutch Operating Rod, 11.1/4" long

1

28XROLLER

Clutch Operating Roller

1

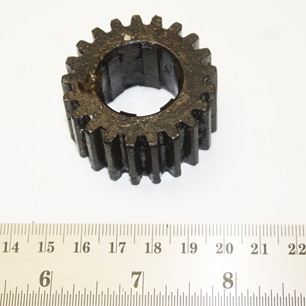

29BA

Clutch Internal Gear, Layshaft

1

30BA

Layshaft with bushes

1

34X

Clutch Roller Race

1

35XROLLER

Clutch Rollerbr>

24

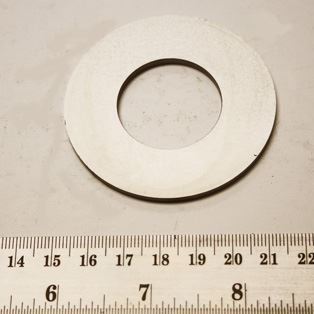

36X-2

Clutch Washer, thin

1

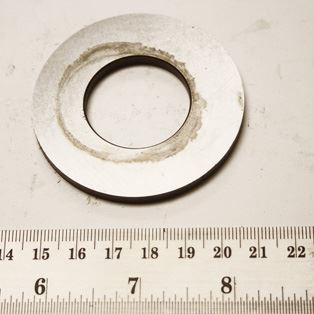

36X-3

Clutch Washer, thick

1

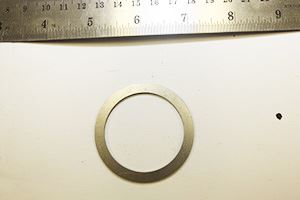

37/1B

Main Bearing washer

1

37-2BA

Main Bearing Retaining Ring

1

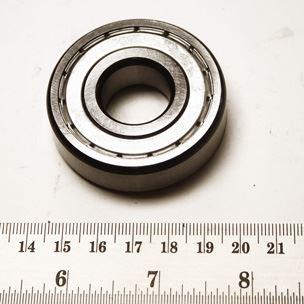

37BA

Main Bearing, small

1

38BA

Ratchet Pinion

1

39BA

Ratchet Pinion Bush

1

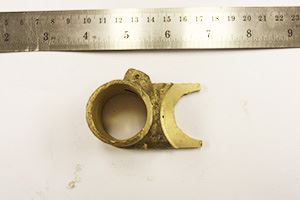

42BA

Selector Fork, Mainshaft

1

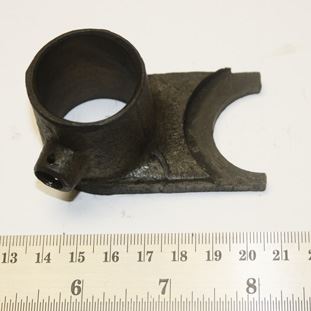

43BA

Selector Fork, Layshaft

1

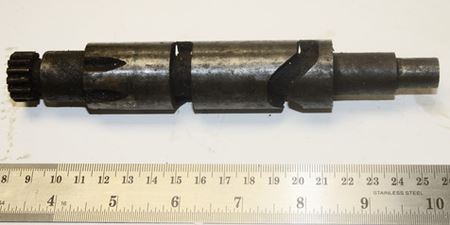

45BA

Camshaft

1

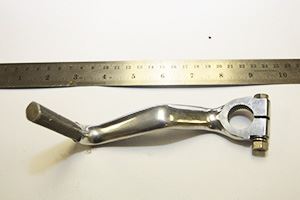

50A

Gearchange Lever

1

60X-6

Gearbox stud, 5/16" x 1.1/16"

2

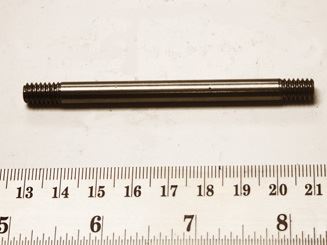

60X-8

Gearbox stud, 1/4" x 3.1/8"

1

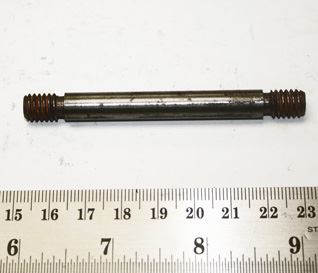

60X-9

Gearbox stud, 5/16" x 3.3/16"

1

63BA

Locating Ring, Driving Gear

1

63X

Gearbox Nut, 3/16" hexagon x 1/4" BSW

4

69X

Mainshaft nut, clutch end

1

70X

Mainshaft nut, kickstart end

1

71X

Mainshaft washer

1

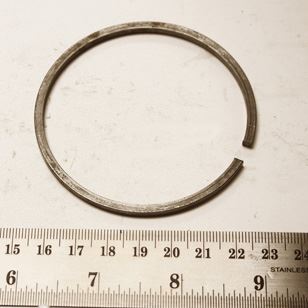

79X

Bearing retaining Ring

1

88X

Layshaft Cover washer

2

95X

Bearing nut, 2BA

1

98X

Spacing Plug, footchange

1

103X

Use 1112

1

110B1

Nut

>1

110BA-1

Gearbox stud, 5/16" x 1.11/16"

1

110BA-2

Gearbox stud, 5/16" x 2"

1

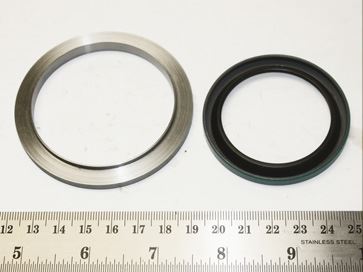

112BA

Bearing Gland, Driving Gear

1

130X

Kickstart Spring

1

130X-1

Kickstart Spring, 1/4"

1

147X

Spring washer, kickstart lever

1

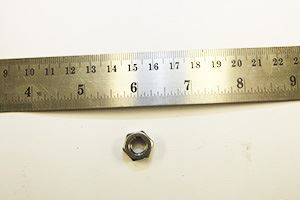

152X

5/16" BSW nut

4

157X

Operating Peg, footchange

1

158X

Cotter Pin, split, 3/32" x 3/4"

1

159X

Camshaft bush, gearbox end

1

163X

Pawl, footchange

1

164X

Pawl Bearing

1

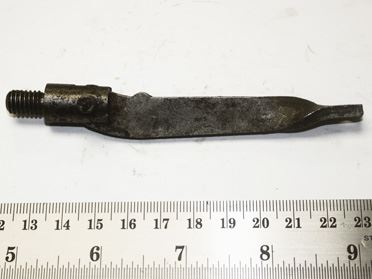

175X

Operating Lever

1

175XBOOTA

Operating Lever, Series 'A'

1

191X

Layshaft bush

2

192XROLLER

Camshaft Roller

12

193X

Pawl Spring

1

194X

Kickstart, folding

1

198X-1A

Kickstart Shaft, Series 'A'

1

198X-O

Kickstart O ring

1

199X

Kickstart Quadrant

1

200X

Kickstart bush, outer

1

201X

Kickstart bush, inner

1

201XA

Kickstart bush, Series 'A'

1

214X

Kickstart Lever washer

1

218X

Driving Gear nut

1

219X

Driving Gear Bearing

1

223X

Driving Gear bush

2

284X

1

286X

Kickstart Case stud

3

286X-1

1/4" x 2.11/32" stud

1

287X

Sector Spindle nut, 5/16" x 26tpi

1

291X

Camshaft Cover washer

1

303X

Spring Plate Thrust Cup

1

303X1

Spring Plate Thrust Cap

1

326X

Kickstart Case Cap

1

328X

Clutch Cap, adjuster sleeve

1

329X

Clutch Operating Fork

1

330X

Clutch Operating Plunger

1

331X

Clutch Adjusting Sleeve nut

1

335X

Kickstart Lever nut, folding

1

349X

Mainshaft Lockwasher

1

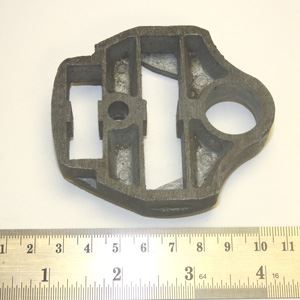

CO49

Spring Box

1

CO51

Ratchet

1

CO52

Footchange Pawl

1

CO53

Control Quadrant

1

CO53AS

Control Quadrant assembly

1

CO54

Control Lever bush

1

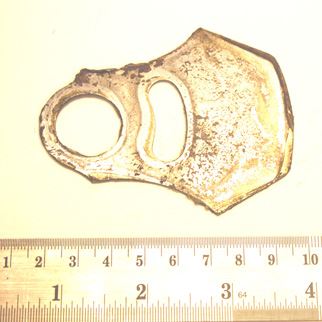

CO56

Spring Box Cover

1

CO58

Spring Plate, pawl

4

CO59

Sping Plate, main

4

CO66

Main Spring

2

CO67

Pawl Spring

2

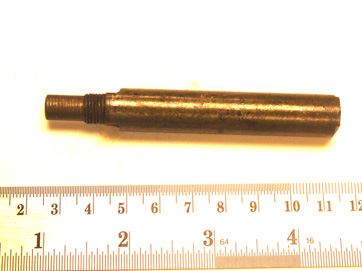

CO90

Sector Spindle

1

CO91

Spindle bush

1

CO94

Footchange Ratchet Sleeve

1

CO95

Bolt

1

CO97

Neutral Indicator

1

CO97/1

Gear Indicator

1

CO105

Sector Spindle screw

1
