HomeG Components

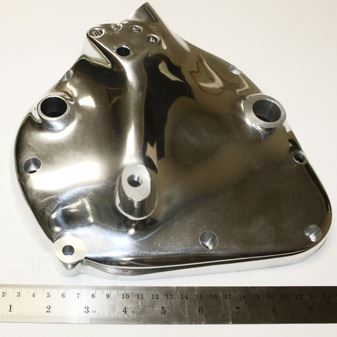

G1/1

Kickstart Cover

1

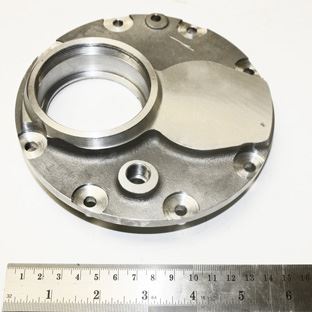

G2

Gearbox Cover Plate

1

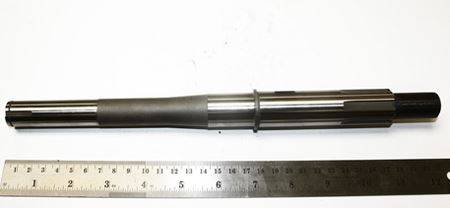

G3

Clutch Mainshaft

1

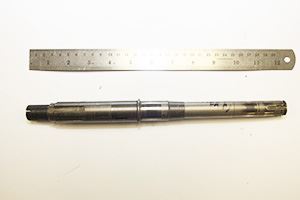

G3/1

Clutch Mainshaft, Series 'D'

1

G3/3

Adaptor, to convert G3 to G3/1

1

G4

Final Drive Shaft

1

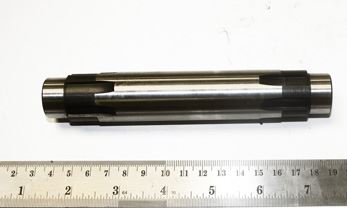

G5

Layshaft

1

G6

Constant Mesh Pinion

1

G6/2

Constant Mesh Pinion

1

G7

Cobstant Mesh Pinion

1

G8/1

Layshaft 2nd Gear

1

G9

Layshaft 1st Gear, 18 teeth

1

G9/1

Layshaft 1st Gear, 21 teeth

1

G10

Layshaft 3rd Gear

1

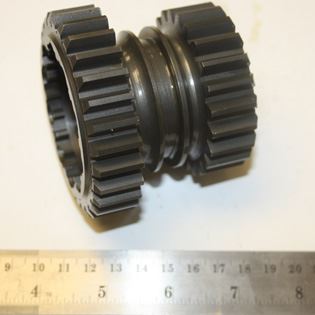

G11

Double Gear, 23/29 teeth

1

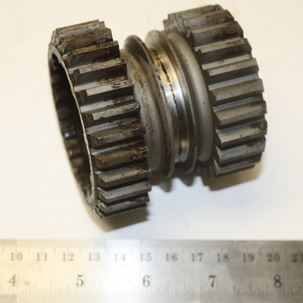

G11/2

Double Gear, 23/27 teeth

1

G12

Third Gear Pinion

1

G14

Final Driveshaft Bearing

1

G14/1

Final Driveshaft Bearing, sealed

1

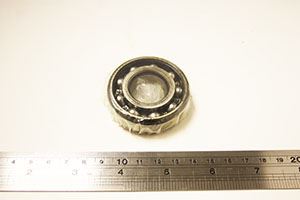

G15

Layshaft Bearing

2

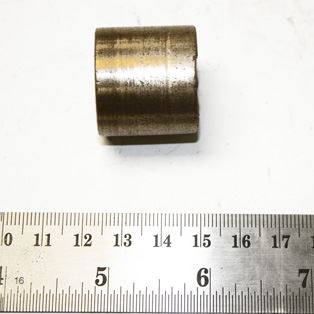

G16

Inner Driveshaft bush

1

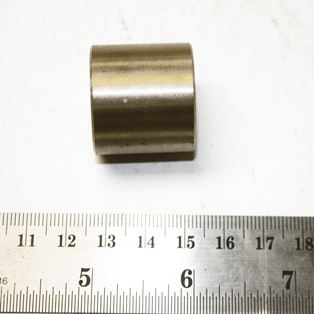

G16LB

Inner Driveshaft bush, lead/bronze

1

G17

Outer Driveshaft bush

1

G18

No 60 Woodruff Key

1

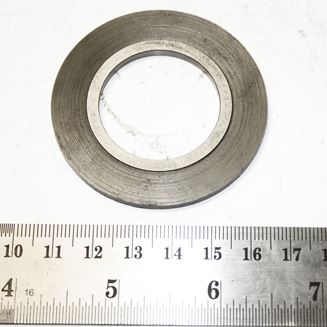

G19

Third Gear Locating washer

1

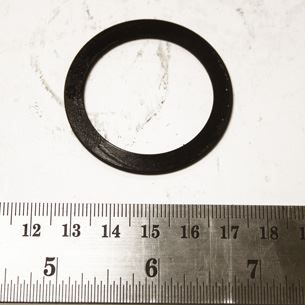

G20/2

Third Gear Locating washer, 0.056"

1

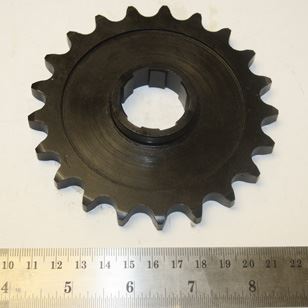

G21/21

Final Drive Sprocket, 21 teeth

1

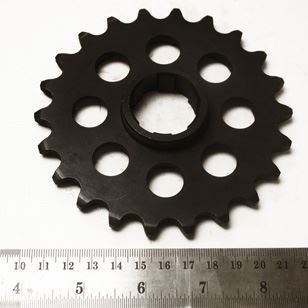

G21/22

Final Drive Sprocket, 22 teeth, 1/4"

1

G22

Chain Seal Cup

1

G23

Sprocket Nut

1

G24

Sprocket Oil Seal

1

G26

Ratchet Spring Cup

1

G27

Ratchet Retaining Circlip

1

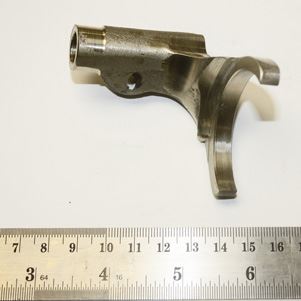

G28AS

Selector Fork Mainshaft assembly

1

G29AS

Selector Fork Layshaft assembly

1

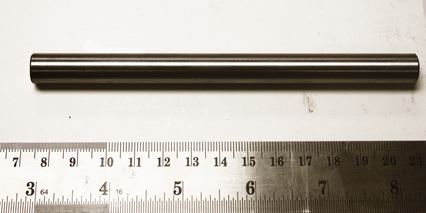

G30

Selector Bar

1

G31/1

Selector Fork Pin

2

G32/3

Camplate

1

G33

Camplate Pinion

1

G34

Camshaft Spindle

1

G35

Selector Pawl

1

G36/1

Selector Pawl Spring

1

G37

Selector Pawl Plug

1

G38

Selector Pawl Sleeve

1

G39/1

Ratchet Shaft Bevel Gear

1

G40/1

Ratchet Shaft

1

G41

Ratchet Shaft Bearing

1

G42/1

Ratchet Pawl Carrier

1

G43

Ratchet

1

G44

Ratchet Retaining nut

1

G45

Bearing Lockring

1

G46

Starting Pinion

1

G46AS

Starting Pinion with bush

1

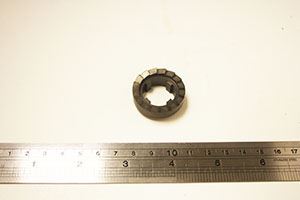

G47

Starting Ratchet

1

G48

Starting Ratchet Spring

1

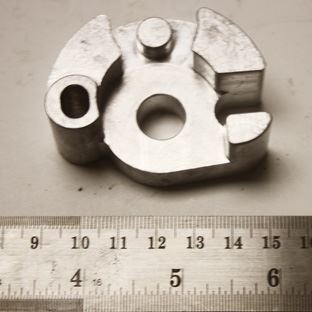

G49

Lever Stop

1

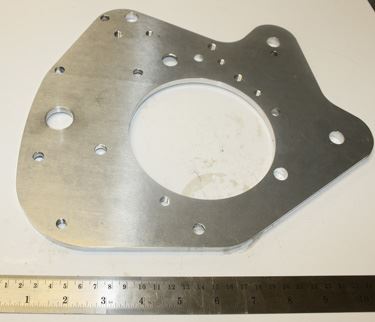

G50

Pivot Bearing Plate

1

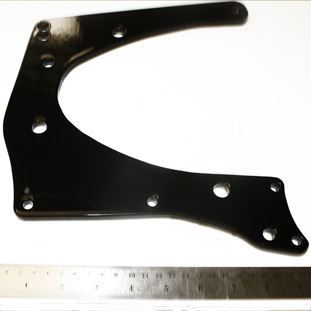

G50/1

Pivot Bearing plate, Comet

1

G51

Chain Sprocket Cover

1

G52

Chain Sealing Felt washer

1

G53

Ratchet Bevel Stop

1

G54

Bevel Return Spring

1

G55

Spring Retaining screw

1

G55/1

Spring Retaining screw, 0BA

1

G57

Stop Plate Adjuster

1

G59AS

Change Speed Pawl assembly

1

G59PIN

Change Speed Pawl pin

1

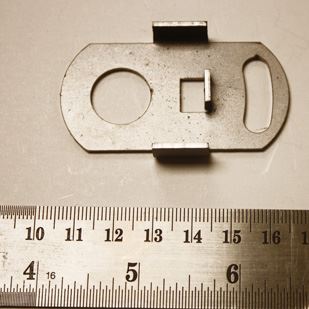

G61/1

Pawl Carrier Centralizer

1

G64

Carrier Return Spring

1

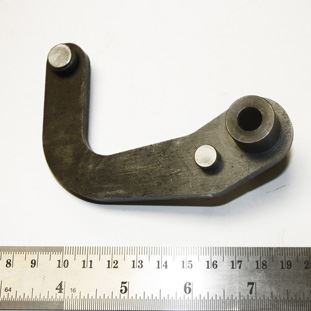

G66/2AS

Actuating Arm assembly

1

G68

Actuating Arm Spindle

1

G70

Centralizing Spring

1

G71

Helper Spring

2

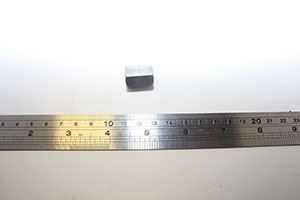

G72

Pivot Plate nut

5

G72/1

Special nut

1

G75

Porous Bronze bush

1

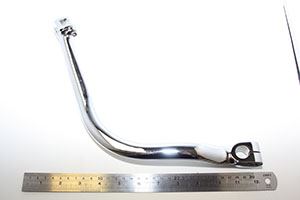

G76

Kickstart Crank, RH

1

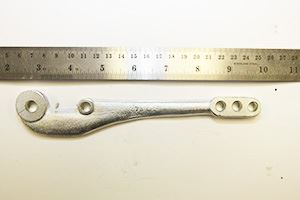

G78

Gearchange Pedal

1

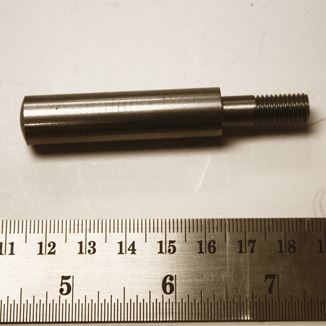

G79/1

Gear Lever Footpiece

1

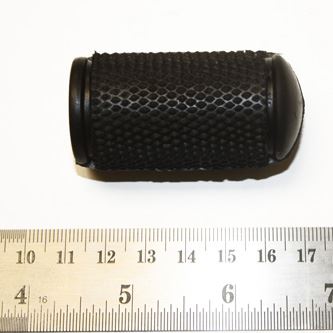

G80

Gear Pedal rubber

1

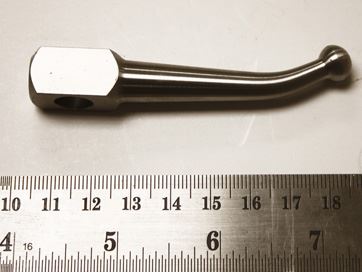

G81

Gear Indicator Lever

1

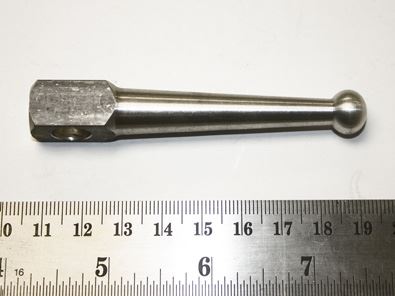

G81/1

Gear Indicator Lever, Serier 'D'

1

G82

Kickstart Quadrant

1

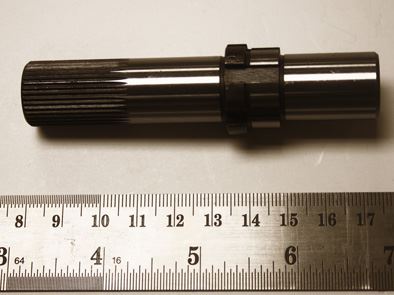

G83

KickStart Shaft

1

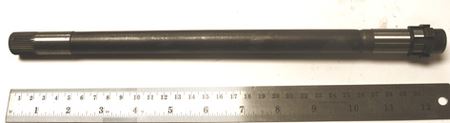

G83/1

Kickstart Shaft, LH

1

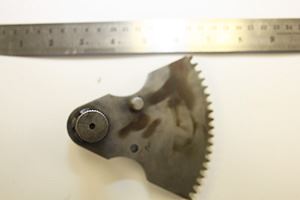

G83AS

Kickstart Quadrant assembly, RH

1

G84

Kickstart bush, cast iron

1

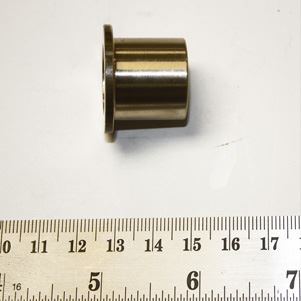

G84/1

Kickstart bush, lead/bronze

1

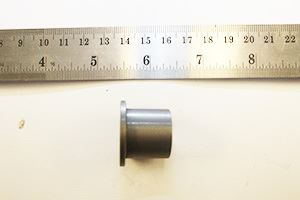

G84OS

Kickstart bush, oversize

1

G86

Kickstart Shaft Spacer

1

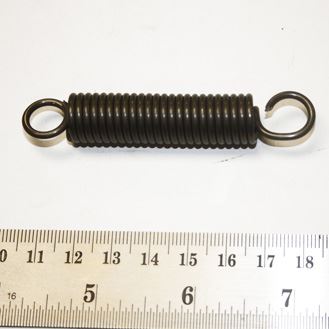

G87/1

Kickstart Return Spring

1

G90

Porous Bronze bush

10

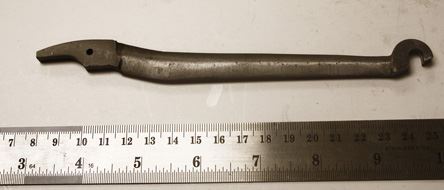

G91/1

Clutch Lever

1

G92

Kickstart Stop Spring

1

G93

Clutch Lever Plunger

1

G94

Clutch Cable Abutment

1

G94/1

Clutch Cable Abutment, Comet

1

G95

Clutch Lever Plunger pin

1

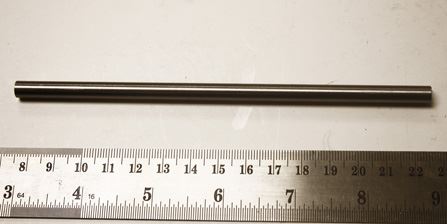

G96/1

Clutch Pushrod

1

G97

Kickstart Stop Plunger

1

G98

Kickstart Stop Sleeve

1

G99

Cover Plate screw

1

G100/1

Blanking Plug

1

G101

Starting Pinion bush

1

G102

Indicator Lever screw

1

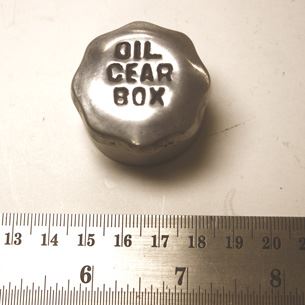

G103

Gearbox Oil Cap, Series 'B'

1

G103/1

Gearbox Oil Cap

1

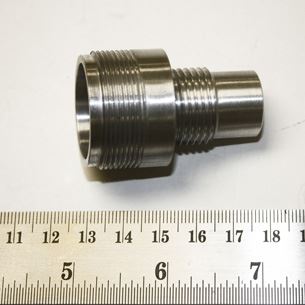

G104

Gearbox Oil Filler

1

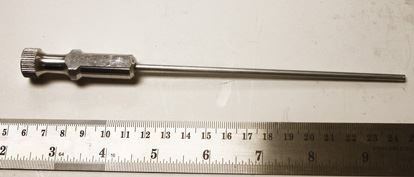

G106AS

Gearbox Dipstick

1

G107

Cover Plate Lock washer

11

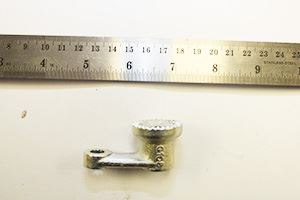

G108

Gearchange Lever, Series 'B'

1

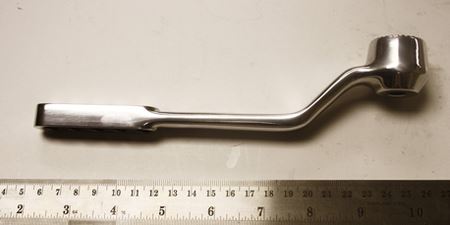

G108/1

Gearchange Lever

1

G113

Gearbox Cover Dowel

1

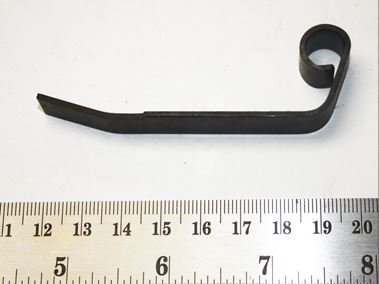

G116

Kickstart Return Spring

1

G117

Gear Lever stud

1
